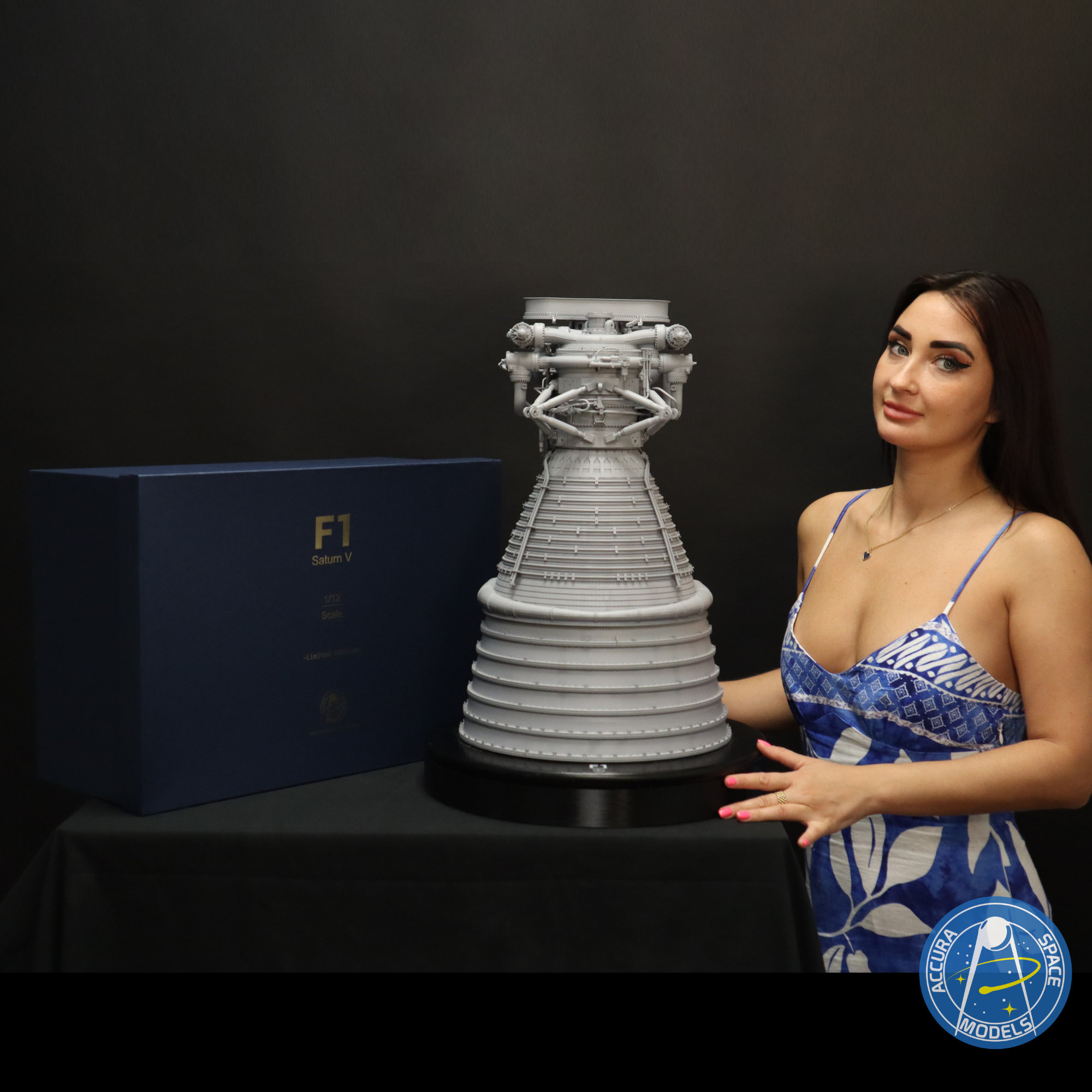

Super high detail scale model kit of the famous F1 rocket engine that powered the Saturn V vehicle that putted humans on the moon!
The F-1, commonly known as Rocketdyne F1, is a rocket engine developed by Rocketdyne. This engine uses a gas-generator cycle developed in the United States in the late 1950s and was used in the Saturn V rocket in the 1960s and early 1970s. Five F-1 engines were used in the S-IC first stage of each Saturn V, which served as the main launch vehicle of the Apollo program. The F-1 remains the most powerful single combustion chamber liquid-propellant rocket engine ever developed.
The F-1 uses RP-1 as the fuel and used liquid oxygen (LOX) as the oxidizer. A turbopump is used to inject fuel and oxygen into the combustion chamber. The material used for the F-1 thrust chamber tube bundle, reinforcing bands and manifold was Inconel-X750, a refractory nickel based alloy capable of withstanding high temperatures. A domed chamber at the top of the engine served as a manifold supplying liquid oxygen to the injectors, and also served as a mount for the gimbal bearing which transmitted the thrust to the body of the rocket. Below this dome were the injectors, which directed fuel and oxidizer into the thrust chamber in a way designed to promote mixing and combustion. Fuel was supplied to the injectors from a separate manifold; some of the fuel first traveled in 178 tubes down the length of the thrust chamber which formed approximately the upper half of the exhaust nozzle and back in order to cool the nozzle.
A gas generator was used to drive a turbine which drove separate fuel and oxygen pumps, each feeding the thrust chamber assembly. The turbine was driven at 5,500 RPM, producing 55,000 brake horsepower (41 MW). The fuel pump delivered 15,471 US gallons (58,560 litres) of RP-1 per minute while the oxidizer pump delivered 24,811 US gal (93,920 l) of liquid oxygen per minute.
Below the thrust chamber was the nozzle extension, roughly half the length of the engine. This extension increased the expansion ratio of the engine from 10:1 to 16:1. The exhaust from the turbine was fed into the nozzle extension by a large, tapered manifold; this relatively cool gas formed a film which protected the nozzle extension
Each second, a single F-1 burned 5,683 pounds (2,578 kg) of oxidizer and fuel: 3,945 lb (1,789 kg) of liquid oxygen and 1,738 lb (788 kg) of RP-1, generating 1,500,000 lbf (6.7 MN; 680 tf) of thrust. During their two and a half minutes of operation, the five F-1s propelled the Saturn V vehicle to a height of 42 miles (222,000 ft; 68 km) and a speed of 6,164 mph (9,920 km/h).]
Full SLA (Stereolithography) 3dprinted scale model kit with very high detail.
Dimensions of finished model:
Height: 488mm (19.2in)
Width/Length: 310mm x 310mm (12.2 x 12.2in)
|Dimensions||33 × 540 × 20 cm|
